Available colors

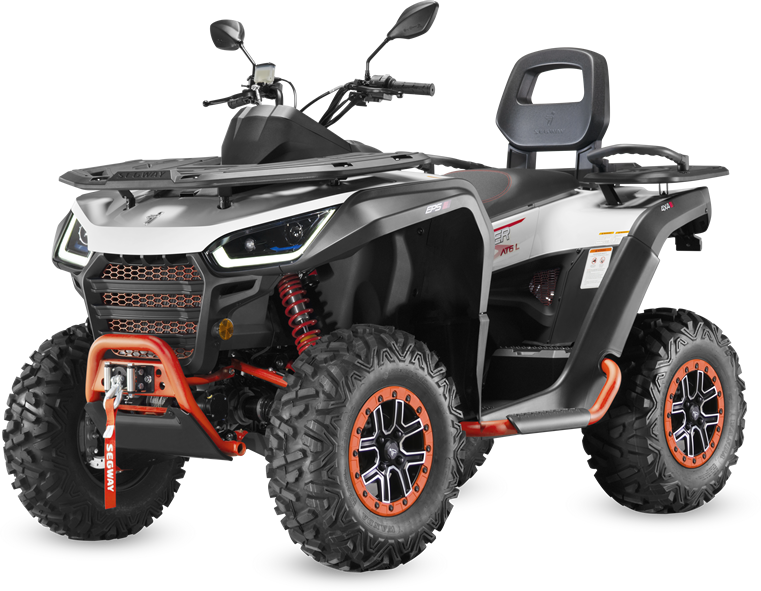

SNARLER ATL6 STANDARD EPS

  • 570cc - 44 Hp
    Motor
  • TFT SCREEN
  • FRONT/REAR INDEPENDENT SUSPENSION
  • FRONT WINCH
  • REAR HOOK
  • GAS TANK 23L
  • DRIVE SYSTEM 2WD 4WD
  • FRONT DIFFERENTIAL LOCKING
  • EPS
  • PRICE 7.390 EUR

Available configurations!

Engine/Motor Type 570cc, 4-Stroke Single-Cylinder,DOHC Engine
Drive System On-Demand 2WD / 4WD
Torque 48 N.m
Horsepower 44hp
Front Axle Zaključavanje prednjeg diferencijala
Powertrain SUS Motor

Prednje vešanje Nezavisno A-arm vešanje 21cm
Zadnje vešanje Nezavisno A-arm vešanje 18cm

Tires Prednje gume 25×9-14"
Zadnje gume 25×11-14"
Wheels / Felne Aliminiumske 14"

Smart-Moving App /
Smart Touch Screen /
Dashboard LCD ekran
Smart Commanding System(DTU+SDC) /

Kapacitet vuče 350kg
Payload Capacity 270kg
Bed Box Capacity /
Nosivost prednjeg i zadnjeg nosača prtljaga Front: 88lb / Rear: 176lb
Fuel Capacity 23 L
Dry Weight 385kg
Međuosovinsko rastojanje 145cm
Visina sedišta 930mm
Ground Clearance 270mm
Dimenzije vozila (Dužina/Širina/Visina) 235 x 128 x 143 cm

Available colors Sivo/Crvena
Lights Halogen
Šasija Ram šasija od visoko kvalitetnog hroma
Smart Electronic Power Steering(EPS) /

OFF-ROAD ATV

Snarler audience of mainly young people, to enjoy the fun of control. The advanced engine technology gives the Snarler series engines much more dynamic power.

the snarl of powerful engine

It is an untamed mechanical beast. Eyes look like torch, heroic body, imposing lines. simple overall visual style, contrast color design with the frame, create a unique Controlled Tension aesthetics.

Dynamic Powertrain
Tech Design

570CC liquid cooled, single cylinder, 4-stroke, DOHC engine,delivers max 44HP and 48N•m of torque. The 570CC engine adopts the optimal design of insulator spark plug and optimized CAM. With the addition of electronic fuel injection system, the powertrain has good adaptability in high/low temperature and high altitude environment.

Dual Oil
Column Piston

The Dual Oil Column Piston cools the cylinder temperature rapidly. Let the speed blood continue to boil.

Liquid & Oil
Heat Exchanger

Water and oil heat exchanger cooling system improves the reliability of power output under tough off-road conditions.

Extreme Performance
Reservoir Shocks

The front and rear Dual-A Arm independent suspension travel is 180mm and 210mm respectively, and the ground clearance is 270mm. It gives you a smooth ride over the roughest terrain.

Front Diff-Steering
+ Rear Diff-Lock

Snarler features a Spiral Angle Front/Rear Constant Drive Shaft, while the front axle differential enables the smooth switching between 2-wheel and 4-wheel drive. The rear axle differential lock can also be switched manually while moving, greatly improving performance.

Lightweight HC
Steel Frame

The high-strength Chromium-molybdenum Steel Frame has the advantages of being lightweight and features a high level of rigidity. Our strong, robust and light frame provides a strong sense of security and a precise driving feel.

Convenient Life
Assistant

Our optional Electric winch can pull up to 3000 pounds and can easily help you out of any trouble. Snarler’s luggage racks feature a large, flat mounting area and high load capacity. You can quickly attach and detach accessories, for strong practicability.

  • Smart Moving & Smart Fun
  • You can access the real-time data of your vehicle through Smart Commanding System(SCS) . The intelligent interaction with your vehicle leads you to epic places to ride!


  • AirLock
  •  When you get close to Snarler, you can activate your vehicle by Bluetooth through your mobile phone (AirLock). You can also use the APP(cellular data) to unlock the car remotely with your mobile phone as the key.






  • Driving Settings
  • Get the EPS Settings on your phone. Customize your Powersports for a personal fit, so you can enjoy the drive!


  • Security
  • Add SOS emergency contact person. In case of serious collision/roll, the APP will automatically send SMS with location to the emergency contact person.


  • Wireless Team Up
  • Team up with friends. The offline map, wireless location, wireless phone help you explore everytime you ride.


  • Real-Time Data
  • Vehicle data view: residual mileage, real-time torque, horse power, EPS mode, subtotal mileage, speed curve, etc.


You can access the real-time data of your vehicle through Smart Commanding System(SCS) . The intelligent interaction with your vehicle leads you to epic places to ride!


 When you get close to Snarler, you can activate your vehicle by Bluetooth through your mobile phone (AirLock). You can also use the APP(cellular data) to unlock the car remotely with your mobile phone as the key.






Get the EPS Settings on your phone. Customize your Powersports for a personal fit, so you can enjoy the drive!


Add SOS emergency contact person. In case of serious collision/roll, the APP will automatically send SMS with location to the emergency contact person.


Team up with friends. The offline map, wireless location, wireless phone help you explore everytime you ride.


Vehicle data view: residual mileage, real-time torque, horse power, EPS mode, subtotal mileage, speed curve, etc.
